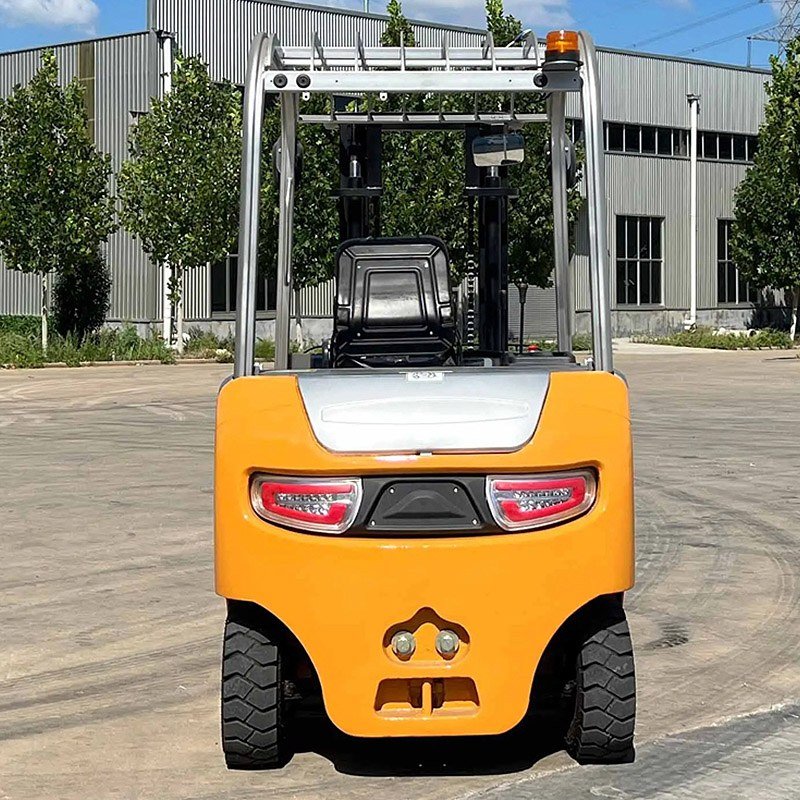

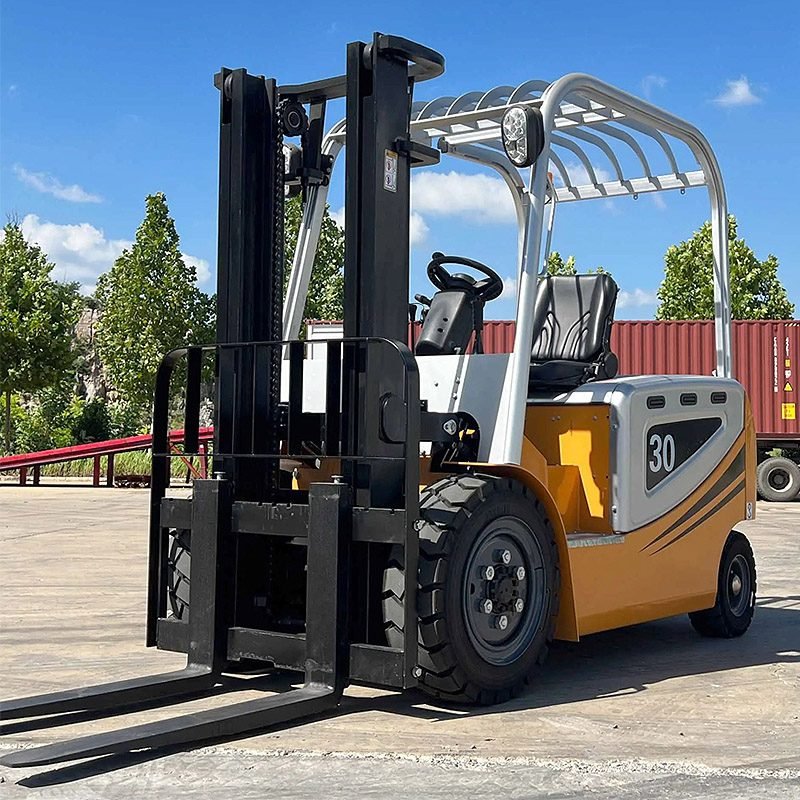

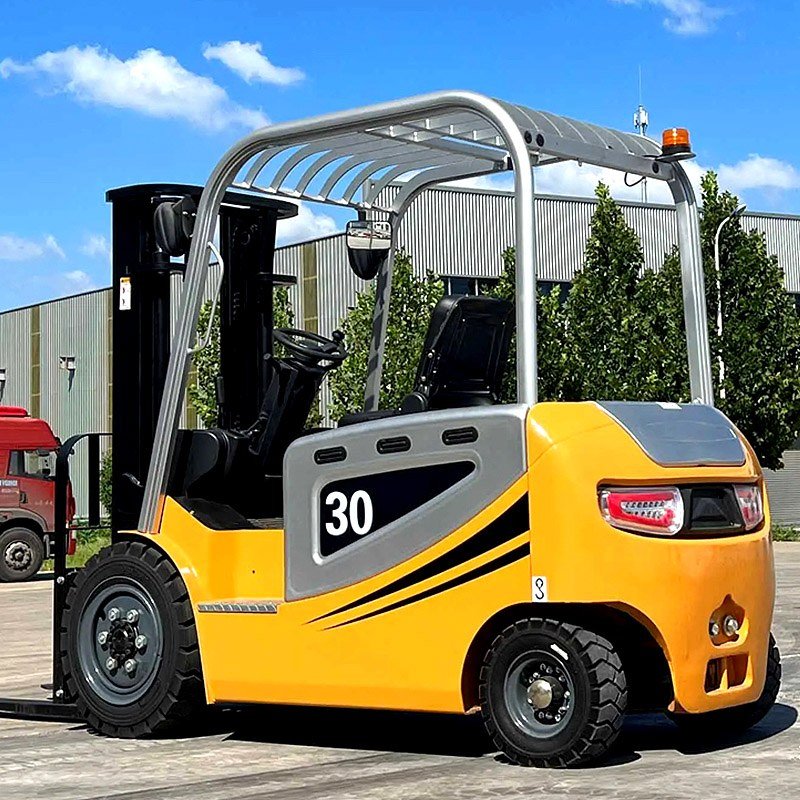

Le mini chariot élévateur électrique de 3 tonnes est conçu pour une manutention efficace et stable des matériaux dans les entrepôts, les sites industriels et les centres logistiques. Sa structure compacte garantit un fonctionnement fluide même dans les espaces restreints, tout en conservant une capacité de charge élevée.
Autonomie prolongée, moteur puissant et capacité de charge accrue
Rotation sur place pour une utilisation flexible et facile
Pneus pleins haute résistance à l'usure, sans entretien et incassables
Châssis monobloc embouti et renforcé + mât en acier de type G renforcé, spécifique aux chariots élévateurs, robuste et durable
Essieu moteur monocouche robuste à basse vitesse entièrement flottant + essieu arrière renforcé spécifique aux chariots élévateurs, stable et fiable
Dispositif hydraulique antidéflagrant + freinage régénératif anti-dérapage + contrôleur haute puissance anti-dérapage, sécurité renforcée
Taille du châssis, hauteur de levage et autres configurations personnalisables.
Small and flexible , large carrying capacity , long-lasting battery life , to meetthe handling needs of different places .
Heavy-duty warehouses, steel markets, building materials logistics centers
Manufacturing plants (machinery, equipment, molds, and other heavy materials)
Container loading and unloading and yard operations
Outdoor hardened areas such as ports, docks, and freight yards
Industrial environments requiring long-term continuous operation
Work areas with slopes or gradients (maximum 15°)
| Product details | ||
 |  |  |

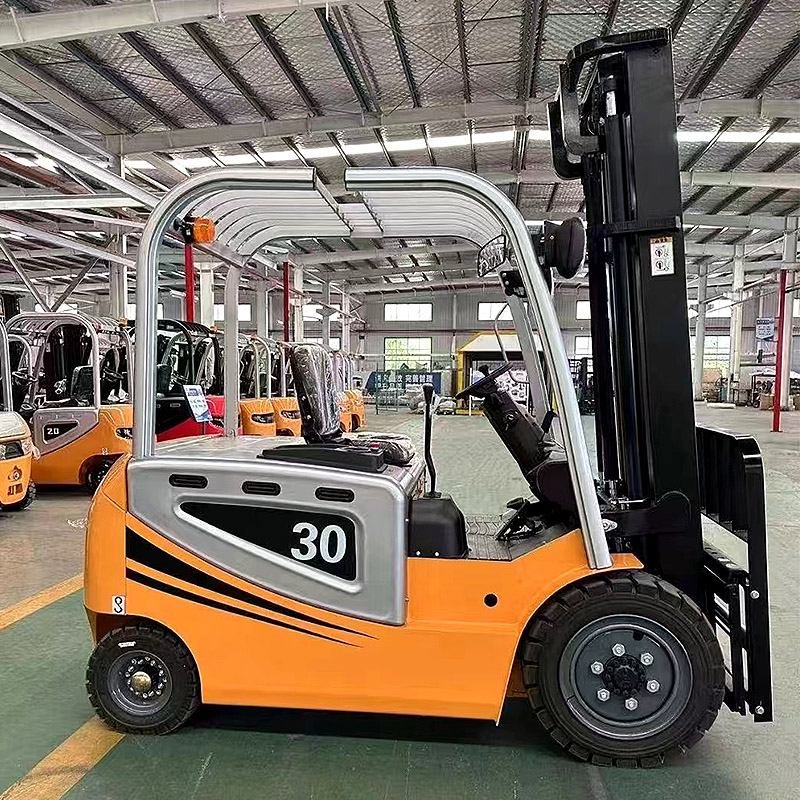

| High-end seats providecomfortable driving The seat can be adjusted forwardand backward by 150 millimeterssimultaneously, and the operatorcan choose a comfortable drivingposition. | Large capacity battery High-powered high-quality batteries,fast charging, lasting batteries,strong power, long continuous use,no maintenance, energy saving andefficiency, strong power | Strengthen the multi-piececomposite plate chain It has a strong load-bearing capacityand smooth transmission, which is"N" times that of ordinary decorativestrips, load capacity is increased,refusing to deformation after a longperiod of time under tension,increasing the life of the vehicle |
 |  |  |
| Hydraulic steering system easy to operate, high stability, powersaving.High temperature and highpressure resistance, more stableperformance | Manganese steel material Thicker "C" door frame steel, thechoice of thicker steel to extend thelife of the door frame | Compact structure,flexible 180 degree steering handle, smallturning radius, flexible steering,good operability in tight spaces |
| 3T Economy Model National Standard Electric Forklift Configuration Table | |||
| Vehicle parameters | |||
| Technical parameters | Maximum lifting weight | 3200kg | |
| long | 2550mm excluding forks | ||
| long | 3770mm including forks | ||
| Width | 1200mm | ||
| high | 2300mm | ||
| Vehicle weight | 4000kg | ||
| Lifting height | 3 meters | ||
| Body material | Thickened one-piece stamped body | ||
| Electrical system | Walking motor | 9500W brushless AC motor | |
| Voltage | 72V | ||
| controller | High-power anti-slope controller | ||
| Battery | Chaowei maintenance-free dry-cell batteries (12 units) | ||
| Lights and signals | Headlights, left and right turn signals, brake lights, daytime running lights, instrument panels, electric horn, etc. | Vehicle dimensions, lift height, and other configurations can be customized according to customer needs. | |
| Chassis system | drive axle | Fully floating single heavy-duty low-speed drive axle | |
| tire | Front tires: 700-10 (high wear-resistant solid tires); Rear tires: 500-8 (high wear-resistant solid tires) | ||
| steering bridge | Heavy-duty forklift rear axle | ||
| Braking method | Handbrake, hydraulic brake | ||
| Other configurations | Lifting cylinder | Enhanced sealing dual hydraulic cylinder | |
| Fork length | 1220mm extra-thick forked forks | ||
| Hydraulic lifting motor | 7500W brushless | ||
| Gantry material | Forklift-specific thickened G-type steel mast | ||
| Steering method | Hydraulic power steering | ||
| Turning radius | 90° can turn on the spot | ||
| Charging time | 7 hours | ||
| Continuous working time | 6 hours | ||
| Climbing angle | 15° | ||
| Vehicle accessories | Vehicle tools/fire extinguisher | ||
| Remark | This vehicle is equipped with a pure iron sand counterweight hydraulic explosion-proof device and regenerative braking to prevent slippage. | ||
| Machine Parameters | |||||||
| Overall dimensions | 2550*1200*2300mm | Braking method | Handbrake,hydraulic brake | ||||
| Vehicle weight | 4000kg | Lifting cylinder | Enhanced sealing dual hydraulic cylinder | ||||
| Lifting height | 3m | Steering method | Hydraulic power steering | ||||
| Body material | Thickened one-piece stamped body | Turning radius | 90°can turn on the spot | ||||
| Walking motor | 9500W brushless AC motor | Continuous working time | 6 hours | ||||
| Voltage | 72V | Climbing angle | 15° | ||||
| controller | High-power anti-slope controller | Gantry material | Forklift-specific thickened G- type steel mast | ||||
| Battery | Chaowei maintenance-free dry battery(12 pieces) | Vehicle accessories | Vehicle tools/fire extinguisher | ||||
Q1: What are the maximum lifting weight and height?
A: The maximum lifting weight is 3200kg, and the lifting height is 3 meters. Higher lifting heights can be customized according to customer needs.
Q2: Is the motor AC or DC? What are the advantages?
A: Both the travel motor and the lifting motor are brushless AC motors (9500W + 7500W). Brushless AC motors are highly efficient, have a low failure rate, require no maintenance, are quiet, and have a long lifespan.
Q3: Are the tires pneumatic?
A: No. The front tires (700-10) and rear tires (500-8) are high-wear-resistant solid tires, which will never burst, require no inflation, are wear-resistant and durable, and suitable for heavy loads and harsh terrain.
Q4: Will it slip on slopes?
A: No. The vehicle is equipped with a high-power anti-slip controller, a regenerative braking anti-slip system, and a hydraulic explosion-proof device. It automatically prevents slippage when parking or starting on slopes, ensuring safety and reliability.
Q5: Is it maneuverable when turning? Q6: Can it be used in confined spaces?
A: Very flexible. It uses hydraulic power steering, supports 90° turning on the spot, and has a very small turning radius, making it ideal for narrow warehouses, aisles, or crowded work environments.
Q7: Can it be customized?
A: Yes. We support customization of vehicle size, lifting height, and other configurations according to customer needs. Please feel free to inquire.
Q8: What material is the counterweight made of?
A: This vehicle is equipped with pure iron sand counterweight, which has a higher density, smaller size, and better stability compared to ordinary counterweights.
Q9: What is the braking system like?
A: It uses a handbrake + hydraulic brake system, which is sensitive and reliable, ensuring safety during heavy-duty operations.
Q9: Is it suitable for outdoor use?
A: Yes. Solid tires, G-type steel mast, anti-slip system, high-power controller, and other features make it perform excellently in outdoor hardened areas, slopes, and freight yards.
